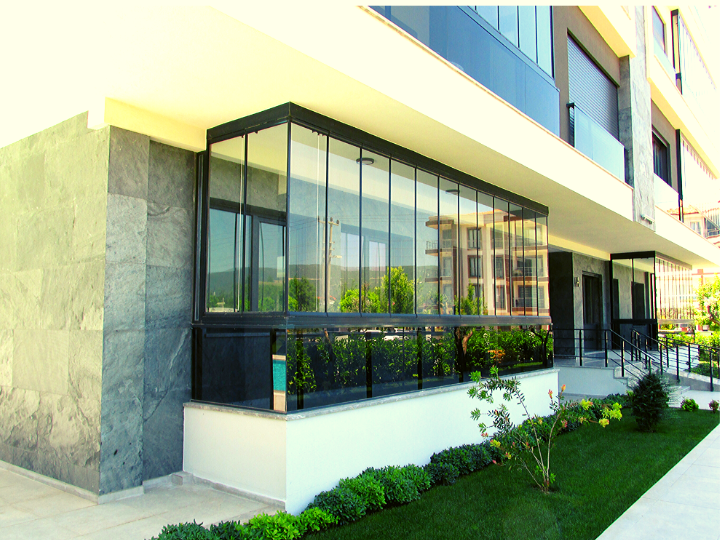

Ege sliding series provides a panoramic view with its ease of use, aesthetic appearance, minimum aluminum and maximum glass features. It allows us to create larger and more comfortable spaces in the winter garden, balcony, terrace, cafes and restaurants.
The system is opened and closed with the right or left movement of the panels on the lower case with 2 wheels with double bearings.
Depending on the area of use, 8 mm or 10 mm tempered glass is used in the system against impact and breakage.
With and without sill options, 5 or 3 boxes can be used depending on the usage area.
When the panels are closed, they turn into a monolithic system connected to each other with a clamped intermediate wick. For an aesthetic appearance, isolation is provided with a 21mm width and concealed bristle wick.
Lock and security ; A mortise lock is used, which can be locked by standard impact or manually. Depending on the purpose of use, key lock can be applied from inside and outside.
System bottom frame profile with dropper feature ; The system solves the insulation problems that may occur due to the perspiration of the glass on the inner surface. With the inclination in the frame structure, it prevents faster evacuation in heavy rains and water accumulation on the frame.
Bottom profile width; 5x profile 11cm, 3’x profile 7cm
Threshold bottom profile height ;45mm
without threshold bottom profile height ; 11mm
Glass thickness : 8mm-10mm
Max height ; 3000
Panel width ; 500mm-1200mm
Max panel weight; 80 Kg
Carrier bearing ; double bearing polyamide coated adjustable wheel
Lock ; standard lock, locked lock
Glass aluminum combination; polyurethane adhesive
Number of panels; 2, 3, 4, 5 or middle joint 2+2, 3+3, 4+4, 5+5
